OEM ODM SMD 5630 LED MCPCB Electronics Max Panel 1550mm*800mm

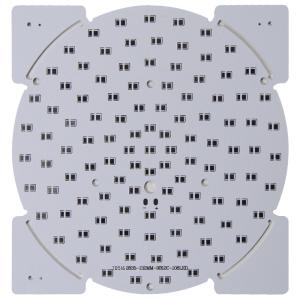

Electronics LED PCB Aluminum PCB Circuit Board LED SMD 5630 PCBA LED PCB
Aluminum PCB is just like a common PCB; the only difference is in the base material. The base material in the aluminum PCBs is aluminum, which has more excellent heat dissipation capability, durability, and dimension stability.
Normal PCBs cannot handle high temperatures, and due to high heat-dissipating components, they bend quickly. Therefore, it’s necessary to use aluminum PCB where high temperature or heat dissipation is expected.
Aluminum Based PCBs are a unique metal-based copper clad laminate. These types of Printed Circuit Boards have good thermal conductivity, electrical insulation, and excellent machining performance.
According to the different design structures and application scenarios of aluminum PCB, there are mainly single-sided aluminum PCB, double-sided aluminm PCB, Flexible aluminum PCB, mixed aluminum PCB, multi-layer aluminum PCB, through-hole aluminum PCB, and so on.
| PCB Capactity |
| Base Material | FR-4, 22F, CEM-3, CEM-1, aluminum, HB, 94V0 |
| Layers | 1-22 layers |
| Max Panel | 1550mm*800mm |
| Copper Thickness | 0.5oz, 1oz, 2oz, 3oz,4oz |
| Dielectric Thickness | 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm |
| Board Core Thickness | 0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,1.5mm, 2.0mm, 3.0mm and 3.2mm |
| Board Thickness | 0.4mm - 4.0mm |
| Thickness Tolerance | +/-10% |
| Aluminum Machining | Drilling, Tapping, Milling, Routing, Die-Punching, Break-off tab available |
| Min Hole | 0.2 mm |
| Max Working Voltage | 2.5kVDC(0.075mm Dielectric), 3.75kVDC (0.15mm Dielectric) |
| Min Track Width | 0.2mm (8mil) |
| Min Track Gap | 0.2mm (8mil) |
| Min SMD Pad Pitch | 0.2mm (8mil) |
| Surface Finishing | HASL lead free, Immersion Gold, Immersion Silver |
| Solder Mask Color | Green, Blue etc |
| Legend Color | Black, White etc |
| E-test | Yes |
| Certificate | UL / CUL / ROHS / ISO9001 |
